Solar Panels
Two solar kits can be used with the KoomBook kit to extend its battery life.
- The 20-W kit is designed specifically to extend the battery life of the KoomBook
- The 65-W kit can extend the battery life of the KoomBook plus 3 or 4 tablets
| 20-W kit | 65-W kit | |
|---|---|---|
| Can we charge the battery from an outlet (220 v /110 v)? | yes, with a USB charger | yes, provided with kit |
| Charging time through main power | around 6 hours | around 4 hours |
| Charging time through solar panel | around 6 hours, depending on sun coverage | N/A |
| Can we charge the battery while recharging a connected device? | No | No |
| How many devices can be charged at the same time? | 1 (1.3 A max), otherwise intensity drops | 2 USB, 1 DC-OUT, 1 TYPE-C |
| Max output power from solar panel | 5.5 V | 19 V |
| Max output intensity from solar panel | 2.1 A, but power drops quickly | 3 A |
| Max output power from battery | 5.2 V fully charged | 5.3 V (USB), 20 V DC OUT |
| Max output intensity from battery | 1.6 A on 1 USB port | 4 A under 20 V |

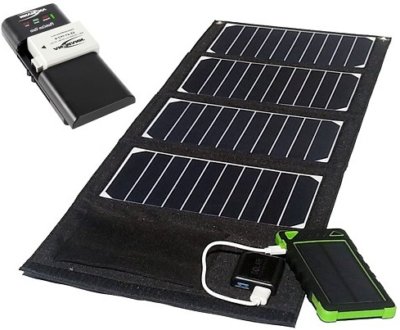

20-W Solar Panel
-
20-W Foldable Solar Panel with Monocrystalline Silicon Cells
- 2 USB 5 V - 2.1 A output
- Size: 78 x 26 x 0.2 cm
- Weight: 590 g

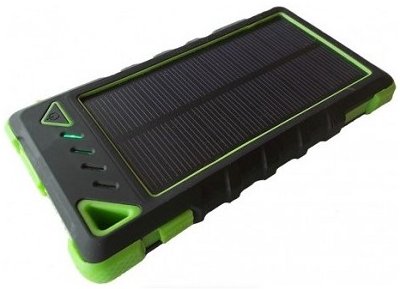

- Lithium-Ion battery 8 Ah - 3.7 V 29 Wh
- 2 USB 2.1 A output
- Size: 14x 7.5 x 1.7 cm
- Weight: 200 g

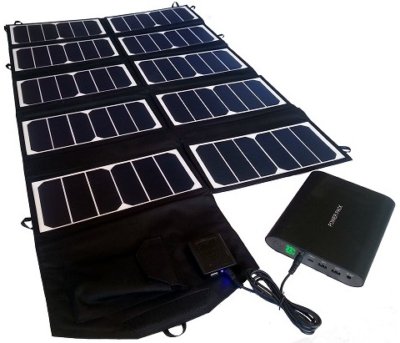

65-W Solar Kit
-
65-W Foldable Solar Panel with Monocrystalline Silicon Cells
- 1 USB 5 V 2.1 A output
- 1 DC 15 V 4.33 A output
- Size: 112 x 60 x 0.2 cm
- Weight: 1.830 kg

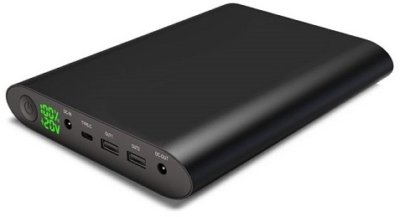

- Lithium-Polymer battery 50 Ah - 3.7 V 185 Wh (See the manual)
- 2 USB 5 V - 3 A output
- 1 TypeC 5 V - 3.5 A output
- 1 DC adjustable 5 V to 20 V output
- Size: 19.5 x 15 x 2.8 cm
- Weight: 1.155 kg
- Delivered with: 1 main supply, 1 DC cable, 24 connectors for different devices
